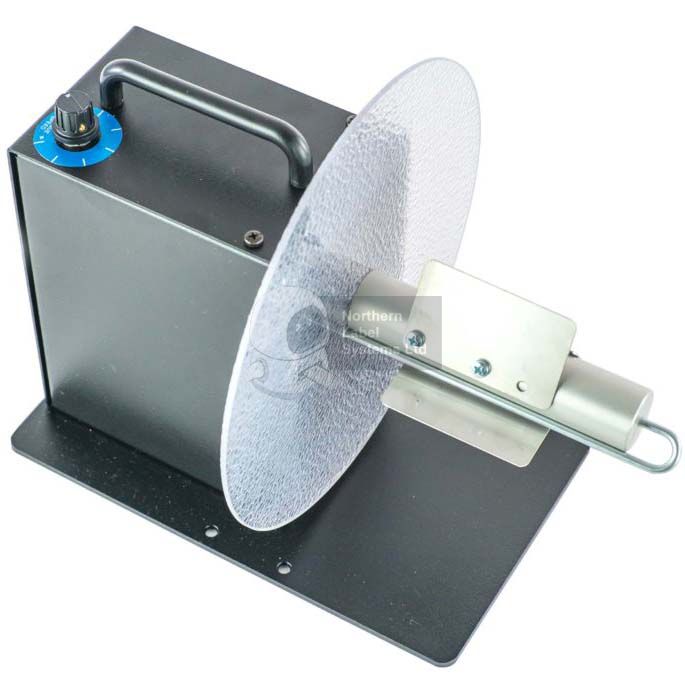

LMR001, Labelmate MC-10 Label Rewind, With Fixed Core Holder

The Labelmate MINI-CAT series of label rewinders are among the most widely used entry-level label rewinders in the world, designed for use with small desktop and mid-range barcode label printers. Featuring a specially engineered bi-directional motor, these units deliver reliable performance and excellent value for money.

The Labelmate MC10 Label Rewinder is a compact, cost-effective label rewinder suitable for use with almost any direct thermal or thermal transfer label printer. Its small footprint (220mm W × 305mm D × 195mm H) means it fits easily onto any desk or workspace.

A UK power supply is supplied with this unit.

Easy to Use

The MC10 is extremely simple to operate. Just place the rewinder in front of your label printer and start rewinding labels as they are printed.

Labels can be rewound in two ways:

• Coreless rewinding – wind labels directly onto the rewind shaft without using a cardboard core.
• Core rewinding – use the supplied 76mm core adapters to rewind labels onto standard cardboard cores.

If you use different core sizes, 38mm or 44mm adapters can be supplied instead of the standard 76mm adapters at no additional cost.

Bi-Directional Rewinding

The MC10 features a bi-directional motor, allowing labels to be rewound either:

• Inside wound, or
• Outside wound

This makes it suitable for a wide variety of label applications and printer setups.

Adjustable Speed Control

Rewind tension and speed are easily controlled using the speed adjustment dial located on the top of the unit. The MC10 can rewind labels at speeds of up to 500mm (20 inches) per second, ensuring smooth and efficient operation alongside your printer.

Large Label Capacity

Despite its compact size, the MC10 offers excellent capacity and can rewind:

• Label rolls up to 4kg in weight
• Maximum roll diameter of 220mm
• Maximum label width of 125mm

An inner label flange disc keeps the edge of the label roll aligned as labels are rewound, helping maintain neat, evenly wound rolls.

Built for Reliability

Like all Labelmate products, the MC10 is designed for reliable, maintenance-free operation and built to a high manufacturing standard.

The unit is backed by a 5-year parts and labour limited warranty (1 year on power supplies), giving you the longest warranty in the label rewinder industry.
