Labelmate LD165-RS, Electronic Label Dispenser, For Standard Labels, LMD031

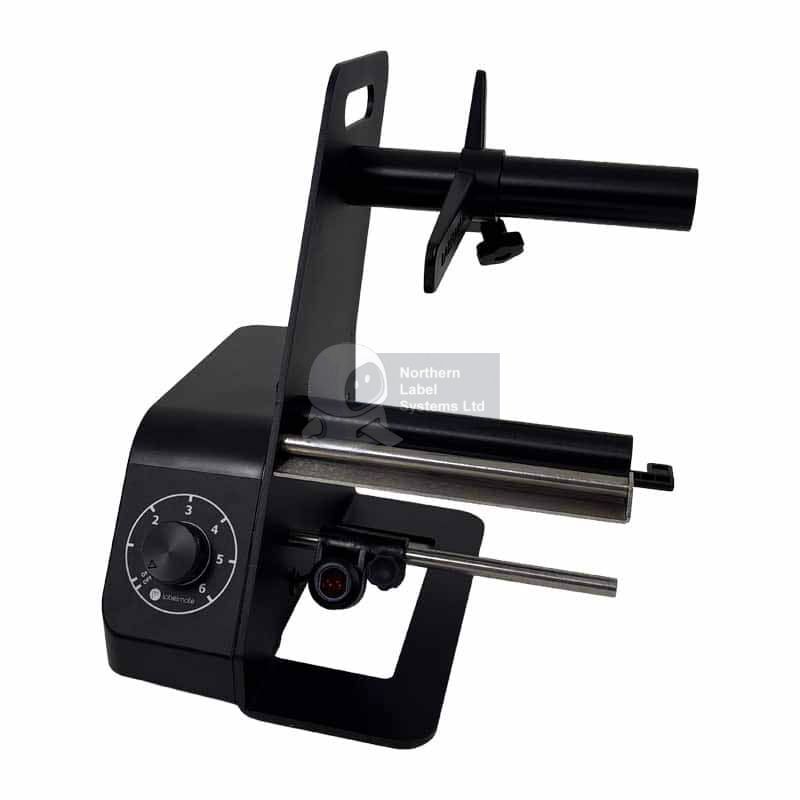

Labelmate LD-165-RS Label Dispenser – Standard Labels

The Labelmate LD-165-RS is a powered label dispenser designed for fast, accurate peel-and-present dispensing of standard (non-clear) labels up to 165mm wide. Using advanced opto-electronic technology and a reflective sensor positioned beneath the label, it reliably detects the leading edge of each label and presents it ready for immediate application.

As soon as the operator removes a label, the next one is automatically advanced and positioned perfectly, making the LD-165-RS ideal for production benches, packing stations and manual labelling workflows where wider labels are required.

Important: This model is not suitable for clear or transparent labels.
For clear labels, please see the Labelmate LD-165-U.

Fast Setup, Simple Operation

The LD-165-RS is ready to use in under 30 seconds, with one simple adjustment to match the label length. Switching between label sizes is quick and easy, helping to minimise downtime in busy working environments.

Its peel-and-present design removes the need for manual peeling, improving productivity and reducing operator fatigue during continuous use.

Compatible Label Types

The LD-165-RS is designed for use with standard label materials, including:

• Direct thermal labels
• Thermal transfer labels
• Synthetic labels (polypropylene, vinyl, polyester, etc)

It is an ideal companion to most label printers, particularly where wider labels are printed and applied manually.

Roll & Core Compatibility

• Accepts label roll widths up to 165mm
• Supplied with 35mm core holders
• Compatible with label cores from 38mm to 76mm
• Maximum external roll diameter: 220mm
• Minimum label length: 6mm

This flexibility allows the LD-165-RS to handle a wide range of label sizes commonly used in logistics, manufacturing, food, chemical and retail applications.

Built for Continuous Use

Designed for all-day, every-day operation, the LD-165-RS delivers reliable performance in demanding environments. Its robust construction ensures consistent dispensing even with wider label formats.

The unit is backed by Labelmate’s 2-year parts and labour limited warranty (1 year on the power supply), giving long-term confidence and trouble-free operation.

Power Supply

• Input: 100–240VAC, 50Hz
• Output: 15V DC, 4.33A

Works Perfectly With Other Label Equipment

The LD-165-RS integrates seamlessly with:

• Label printers for print-then-apply workflows
• Label rewinders for tidy roll handling and batch processing

Combined with compatible equipment, it forms an efficient manual labelling workstation.

Technical Summary

• Model: LD-165-RS
• Label Type: Standard labels only (non-clear)
• Max Label Width: 165mm
• Min Label Length: 6mm
• Max Roll Diameter: 220mm
• Warranty: 2 years (1 year power supply)
