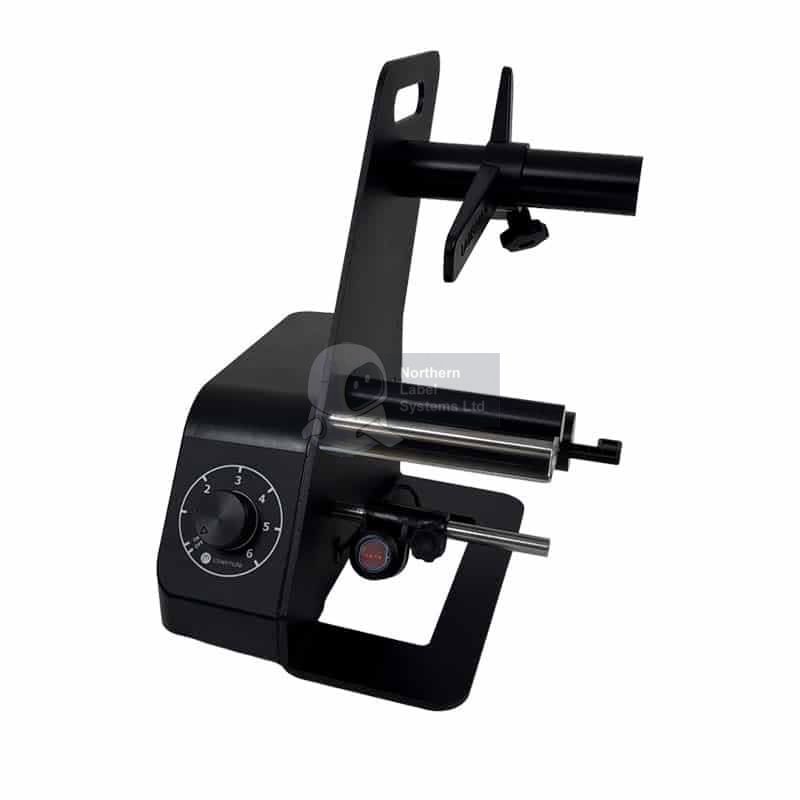

Labelmate LD115-RS, Electronic Label Dispenser, For Standard Labels, LMD030

The Labelmate LD-115-RS is a compact, powered label dispenser designed for fast, accurate peel-and-present dispensing of standard (non-clear) labels. Using advanced opto-electronic technology and a reflective sensor positioned beneath the label, it reliably detects the leading edge of each label and presents it perfectly for immediate application.

As soon as the operator removes a label, the next one is automatically advanced, making the LD-115-RS ideal for production benches, packing stations and manual labelling environments where speed and consistency matter.

Important: This model is not suitable for clear or transparent labels. For clear labels, please see the Labelmate LD-115-U.

Fast Setup, Simple Operation

The LD-115-RS is ready to use in under 30 seconds. There is just one simple adjustment to match the label length, making it easy to switch between different label sizes with minimal downtime.

Its peel-and-present design eliminates manual peeling, improving productivity and reducing operator fatigue during all-day use.

Compatible Label Types

The LD-115-RS is suitable for a wide range of standard labels, including:

• Direct thermal labels
• Thermal transfer labels
• Synthetic labels (polypropylene, vinyl, polyester, etc)

This makes it an excellent companion to most label printers, especially in environments where labels are printed first and then applied by hand.

Roll & Core Compatibility

• Accepts label widths up to 115mm
• Supplied with 35mm core holder
• Compatible with label cores from 38mm to 76mm
• Maximum external roll diameter: 220mm
• Minimum label length: 6mm

This flexibility allows the LD-115-RS to work with most common label rolls used in warehousing, logistics, manufacturing and retail.

Built for Continuous Use

Designed for all-day, every-day operation, the LD-115-RS delivers reliable performance in demanding environments. Like all Labelmate powered dispensers, it is engineered for durability and precision.

The unit is backed by Labelmate’s 2-year parts and labour limited warranty (1 year on the power supply), providing long-term peace of mind.

Works Perfectly With Other Label Equipment

The LD-115-RS integrates seamlessly with:

• Label printers for print-then-apply workflows
• Label rewinders for neat roll management and batch processing

Pairing a dispenser with a rewinder and printer creates an efficient manual labelling station with minimal handling.

Technical Summary

• Model: LD-115-RS
• Part Number: LMD030
• Label Type: Standard labels only (non-clear)
• Max Label Width: 115mm
• Min Label Length: 6mm
• Max Roll Diameter: 220mm
• Warranty: 2 years (1 year power supply)
