Labelmate LD115-U, Electronic Label Dispenser, For Clear and Standard Labels, LMD035

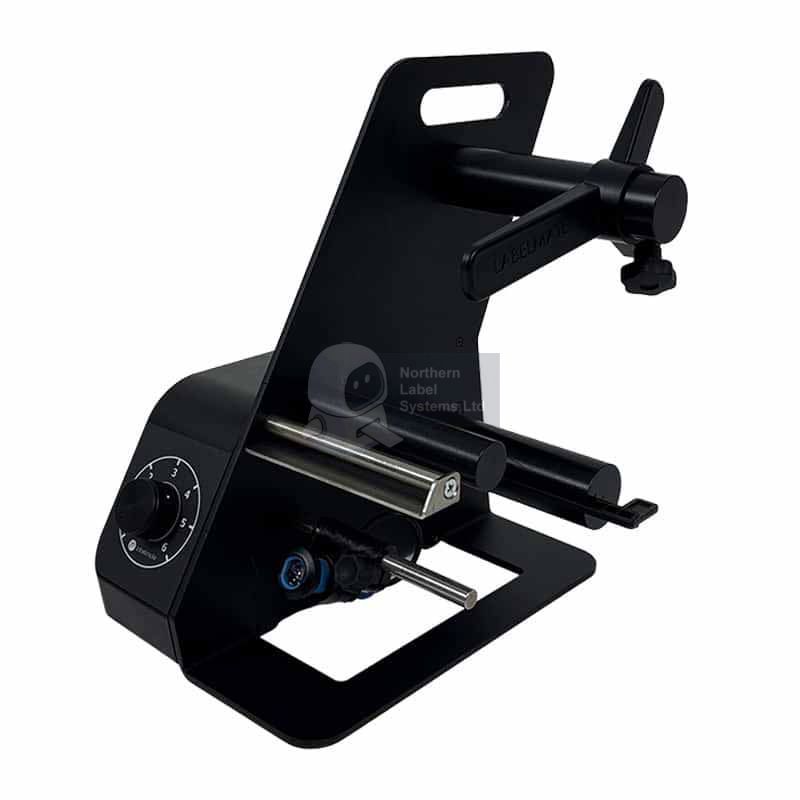

Labelmate LD-115-U Label Dispenser – Clear & Standard Labels
The Labelmate LD-115-U is a compact, powered label dispenser designed to dispense both standard and clear (transparent) labels with speed and precision. Using advanced opto-electronic technology and an ultrasonic sensor, it accurately detects the leading edge of each label regardless of material or transparency.
As soon as the operator removes a label, the next one is automatically advanced and presented, making the LD-115-U ideal for production benches, packing stations and manual labelling applications where mixed label materials are used.
This model is the correct choice for clear or transparent labels.
For standard labels only, see the Labelmate LD-115-RS.
Fast Setup, Simple Operation
The LD-115-U is ready to use in under 30 seconds, with one simple adjustment to match the label length. Changing label sizes or materials is quick and straightforward, keeping downtime to a minimum.
Its peel-and-present design removes the need for manual peeling, increasing productivity and reducing operator fatigue during continuous use.
Compatible Label Types
Thanks to its ultrasonic sensing technology, the LD-115-U reliably handles a wide range of label materials, including:
This makes it an excellent partner for most label printers, particularly where multiple label materials are used within the same workflow.
Roll & Core Compatibility
- Accepts label widths up to 115mm
- Supplied with 35mm core holders
- Compatible with label cores from 38mm to 76mm
- Maximum external roll diameter: 220mm
- Minimum label length: 6mm
The LD-115-U accommodates most standard label roll formats used across manufacturing, logistics, cosmetics, food, and retail environments.
Built for Continuous Use
Designed for all-day, every-day operation, the LD-115-U delivers dependable performance in demanding production settings. Its robust construction and precise sensing make it a reliable solution where clear and non-clear labels are both required.
The unit is backed by Labelmate’s 2-year parts and labour limited warranty (1 year on the power supply), ensuring long-term confidence and trouble-free operation.
Power Supply
- Input: 100–240VAC, 50Hz
- Output: 15V DC, 4.33A
Works Perfectly With Other Label Equipment
The LD-115-U integrates seamlessly with:
- Label printers for print-then-apply processes
- Label rewinders for controlled roll handling and batch work
Used together, these components form an efficient and flexible manual labelling workstation.
Technical Summary
- Model: LD-115-U
- Part Number: LMD035
- Label Type: Standard & clear (transparent) labels
- Max Label Width: 115mm
- Min Label Length: 6mm
- Max Roll Diameter: 220mm
- Warranty: 2 years (1 year power supply)
